| Sản phẩm | Main – Bo mạch chủ |
| Tên Hãng | ASUS |

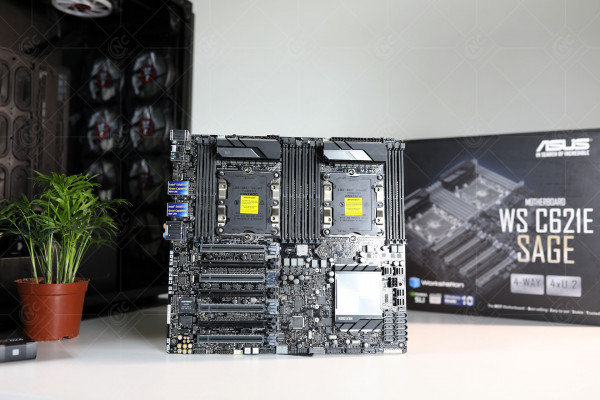

| Model | WS C621E SAGE |
| CPU hỗ trợ | Dual Intel® Socket P (LGA 3647) for Intel® 1st and 2nd Xeon® Scalable Processors Family (205W) |
| Chipset | Build in Intel® C621 |
| RAM hỗ trợ | 12 x DIMM, Max. 1536GB, DDR4 2933/2666/2400 MHz RDIMM, LR-DIMM Memory
* Please refer to ASUS AVL for the latest update.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Hình ảnh | Integrated Graphics Processor
VGA port(Optional)
– Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
Aspeed AST2500 with 64 MB VRAM |
| Hỗ trợ đa card màn hình | Supports NVIDIA® 4-Way SLI™ Technology *1
Supports AMD 4-Way CrossFireX Technology *1 |
| Khe cắm mở rộng | 3 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
2 x PCIe 3.0 x16 (x8 mode) |
| Lưu trữ | Intel® C621 Chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
ASMedia® SATA 6Gb/s controller :
2 x SATA 6Gb/s port(s),
4 x U.2 connector,
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) |
| LAN / Wireless / Bluetooth | Intel® I210-AT, 2 x Gigabit LAN Controller(s) |
| Âm Thanh | Realtek® S1220A 7.1-Channel High Definition Audio CODEC *2
– Power pre-regulator reduces power input noise to ensure consistent performance
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Front panel audio connector (AAFP)
– Supports up to 32-Bit/192kHz playback
Audio Feature :
– DTS Connect
– DTS Headphone:X
– Optical S/PDIF out port(s) at back panel
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB | ASMedia® USB 3.1 Gen 2 controller :
2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM)
Intel® C621 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel® C621 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
| Workstation Feature | ProCool Power Connector
USB BIOS Flashback®
ASUS PIKE SAS upgrade kit*3 |
| Tính năng đặc biệt | Gamer’s Guardian:
– DIGI+ VRM
– SafeSlot
ASUS Digital Power Design :
– Industry leading Digital 7 + 1 Phase CPU Power Design
– Industry leading Digital 2 Phase DRAM Power Design
ASUS Exclusive Features :
– Front Panel USB 3.0 Support
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-Code
– ASUS Q-DIMM
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) |
| Cổng kết nối ( I/O bên trong) | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x TPM header
1 x COM port(s) connector(s)
10 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
2 x CPU Fan connector(s) (2 x 4 -pin)
7 x Chassis Fan connector(s) *5
2 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x VGA connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x AUX panel header(s)
1 x SMBus header(s)
1 x 6-pin EATX 12V_3 Power connector
1 x System panel connector
4 x U.2 Connector (support U.2 NVMe device) |
| Cổng kết nối ( I/O Phía sau) | 1 x PS/2 keyboard/mouse combo port(s)
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 *4
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback® Button(s)
1 x 8-channel Audio I/O |
| Kích cỡ | EEB Form Factor
12 inch x 13 inch ( 30.5 cm x 33 cm ) |
| Environment | Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing) |
| Ghi chú | * Dual Intel® Socket P/LGA 3647 (Square)
*1 Actual number of multi-graphic support differes per Vendors’ graphic cards. Please check with vendor beforehand.
*2 Due to limitation in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10
*3 Please check AVL list for supported add on card
*4 1 x Type A, 1 x Type C
*5 5 x Front, 2 x Rear |
